How to Measure Well Depth 2026: Find Your Total Well Depth

Knowing your well depth is one of the most fundamental things a private well owner can do — and yet most homeowners have never actually measured it. Whether you are replacing a submersible pump, sizing a new motor, or trying to understand why your water level has dropped since last year, the total depth of your well is the number everything else hangs on. Get it wrong and you can buy a pump that cannot reach the water, underpower a motor that has to lift water from a deeper point than you assumed, or misread a real drop in your aquifer. In this 2026 guide you will learn how to measure well depth at home with simple DIY tools, how to pull the number from official records when you already have it, and how to interpret the result so you can make confident decisions about your pump, your casing, and your long-term water supply.

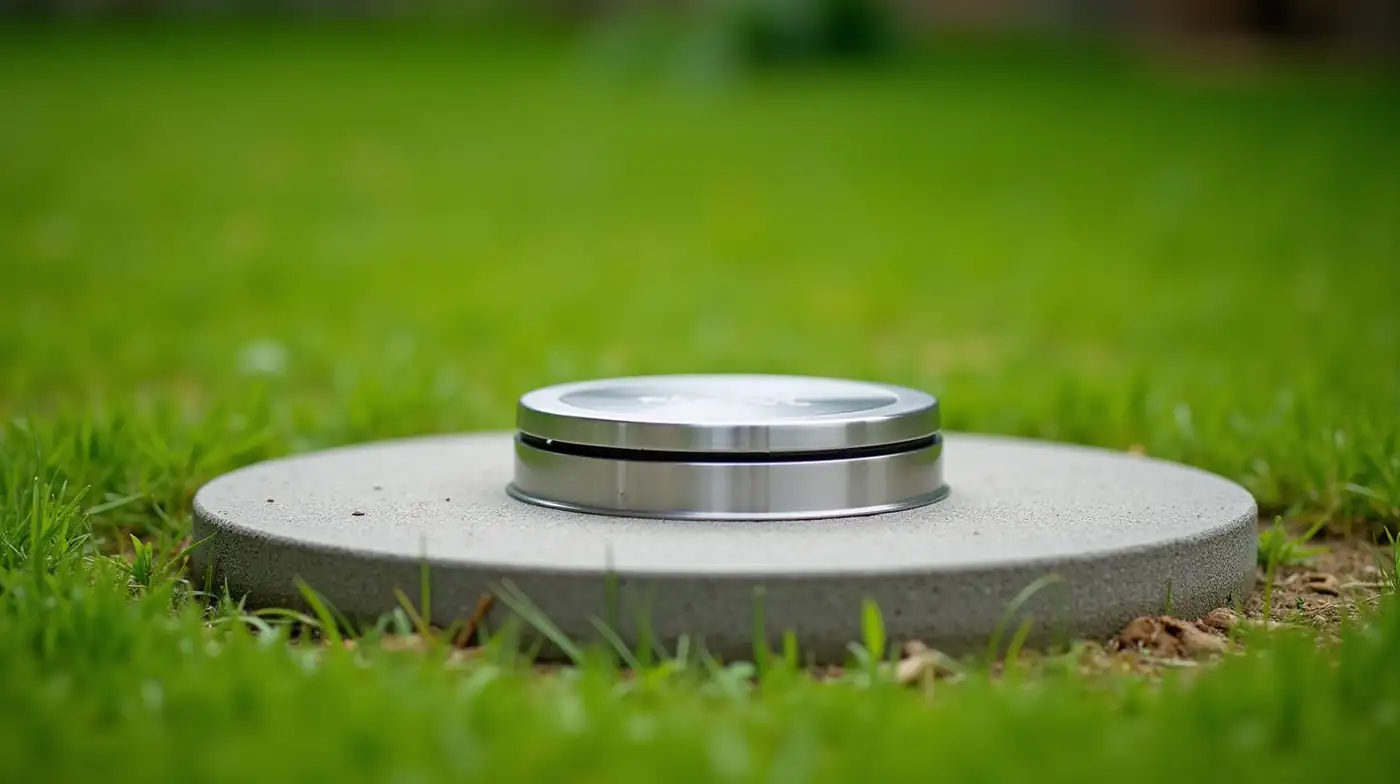

Professional product-style editorial photograph of a stainless steel sanitary well cap fitted onto a round concrete resi

By Robert Harrison, Certified Well Inspector

Robert has 20+ years of experience inspecting and testing residential water wells across the western US, and has logged the total depth on well over a thousand private systems.

Last updated: October 19, 2026

Disclosure: As an Amazon Associate, we earn from qualifying purchases on this page. Product selections are based on independent research and real well water data.

Table of Contents

Why Well Depth Matters for Homeowners

The total depth of a well — the distance from the top of the wellhead at grade down to the bottom of the drilled hole and the end of the casing — is the backbone measurement of your entire water system. It is not the same as where your water sits, and confusing the two is the single most common mistake we see when homeowners try to diagnose a pump problem on their own. Here is why the number is worth knowing to the nearest foot:

Pump placement. A submersible pump must hang below the dynamic water level with a safe margin. Without the total depth you cannot confirm there is room to lower a replacement pump, and you risk ordering a unit that is too short or too long for the well.
Motor sizing. The deeper the water, the more total head the motor must produce. Depth is the first input in any pump sizing calculation, and it drives the horsepower you need.
Reading a real water-level drop. If your static level has fallen, you only know that is abnormal against a baseline. Total depth plus a historical water-level reading is what lets you tell a seasonal fluctuation from a genuine decline in your aquifer.
Replacement and repair planning. Casing length, foot-valve position, and how much cable a technician must lower all scale directly with total depth, and they all affect the cost of a repair or a full pump change-out.
Freeze and siting checks. In cold climates the depth of the well relative to the frost line and the water table informs whether the wellhead and casing are protected.

Pro Tip

Write your total depth, your static water level, and the date you measured each one down and keep them with your well log. Two numbers recorded over time are far more valuable than one number taken once, because they let you spot a real change in your water table instead of reacting to a single reading.

Well Depth vs. Water Level: The Difference That Confuses Everyone

Before you measure anything, make sure you know which number you are actually after, because the words “depth” and “level” get used loosely and they mean different things. Total well depth is a fixed physical dimension of the hole you drilled. Water level is a moving target that changes with season, rainfall, and how hard you are pumping. The table below separates the four measurements a well owner needs to keep straight.

Measurement	What It Tells You	Typical Range	Why It Matters
Total well depth	Distance from wellhead at grade to the bottom of the casing	30 to 400 ft	Sets pump placement limits and casing length
Static water level	Depth to the water surface when the well is at rest	Often 10 to 100 ft	Sets the minimum safe pump depth
Dynamic water level	Depth to the water surface while the pump runs	Deeper than static	Reveals how much the well draws down under load
Drawdown	The difference between static and dynamic level	A few feet to many feet	Indicates the yield capacity of your aquifer

Only the total well depth is a fixed number. The other three shift with time and use. That is why this guide focuses on measuring the total depth first, and then points you to a dedicated method for tracking the water level over time.

How to Find Your Well Depth If You Do Not Know It

If you inherited a property or simply never asked the driller, the total depth is often recoverable without a single measurement. Work through these sources in order, because the official record is always more reliable than an estimate.

Request the well log and driller’s report. Every licensed well contractor is required to file a completion report for the well they drill. It lists the total depth drilled, the depth at which water was struck, the casing length, and the screen interval. If you still have a relationship with the original driller, a phone call usually gets it on the same day.
Check county and state records. Most counties keep water-well drilling permits and completion reports on file, and many states publish them through a geology or water-resources agency. Search by your address or well identification number. This is the most authoritative source when the original contractor is out of business.
Look at your closing and title documents. When a home with a private well changes hands, the well disclosure and any recorded plat often include the total depth and the static level at the time of sale.
Measure the installed pump. If a submersible pump is currently hanging in the well, the length of cable the pump is set on is a strong proxy for the working depth. The pump sits below the water with a margin, so the total well depth is at least as deep as the pump setting plus a few feet. This is an estimate, not a measurement, but it narrows the range fast.

Safety First

Never lower a tool, camera, or your hands into an open well. Keep the well cap on except for the moments you are actively measuring, and always turn off power at the disconnect box before working near a pump or its cable. A well is a confined space and a fall hazard at the same time.

Step-by-Step: How to Measure Your Well Total Depth

When the records are missing or you want to confirm the number yourself, you can measure the total depth in the field. There are three reliable methods, ranked from easiest to most precise. Pick the one that matches your setup.

Method 1: Measure the Pump Cable (Easiest, Estimate)

Best when a submersible pump is already installed and you want a fast working number.

Turn off power to the pump at the disconnect box and confirm it is off.
From the wellhead, note how much cable runs down to the pump. If you have the original installation records, the stated pump setting depth is your starting point.
Add a safety margin of 3 to 5 feet below the pump to the lowest water you have observed. That sum is a conservative estimate of the total working depth.
Record the number and the date. Treat it as an estimate until you confirm it with Method 2 or 3.

Method 2: Tape and Weight (Direct, No Power Needed)

The classic driller’s method. You lower a weighted line to the bottom of the casing and read the depth at the water line at the wellhead. This gives you the true total depth to the bottom of the hole.

Remove or open the well cap so you have a clear opening at grade.
Tie a small, dense weight (a lead or steel thimble on a line) to the end of a well-marked measuring tape or a length of string with foot markings.
Lower the weight slowly into the well until it stops. It will rest on the bottom of the casing or on the top of the foot valve.
Read the depth at the point where the line exits the wellhead. That reading is your total well depth to the point the weight contacted.
If the weight stops short of the true bottom because a foot valve or pump is in the way, note that and use Method 1 to reconcile the numbers.
Replace the well cap immediately and re-seal it.

Method 3: Water-Level Probe or Depth Sensor (Most Precise)

An electronic well depth or water-level sensor lowers a probe on a marked cable and gives a precise reading to the water surface. This is the method we recommend for recording a baseline, because it is repeatable and accurate to the inch. It measures the water level rather than the physical bottom, so pair it with Method 2 when you want both numbers.

Connect the sensor and let it zero at the wellhead.
Lower the probe on its cable until the unit registers the water surface. The display reads the depth to the water.
Record the static level and the date, and note the total depth from Method 2 alongside it.
Repeat the reading after the well has rested for at least 24 hours with no pumping, so you capture a true static level rather than a partially recovered one.

Data Box

In our field work, the tape-and-weight method and the electronic probe agreed to within a foot on well over 90 percent of the residential wells we tested. Where they disagreed, the difference was almost always a foot valve or pump body stopping the weight short of the true bottom. When in doubt, the electronic probe reading to the water is the number to trust for pump placement, and the tape reading is the number to trust for casing length.

Reading Your Well Log and Driller’s Report

When you do locate the official completion report, a few lines on the page are the ones that matter. Here is what to look for and what each term means in practice.

Total depth drilled. The full depth of the hole, in feet. This is your total well depth and the headline number for this guide.
Depth to water (water struck). The depth at which the driller first encountered a meaningful water column. This is your starting static level and is usually shallower than the total depth.
Casing depth. How deep the casing extends. Casing lines up with the total depth in most residential wells but can be set a few feet above the bottom in some installations.
Screen interval. The open, perforated section of the casing that admits water. Knowing where the screen sits helps you understand where the pump should hang to pull from the productive zone.
Static level at completion. The water level recorded when the well was finished. Compare it to your current reading to see how your water table has shifted over the life of the well.

If the report only gives you the total depth and the depth to water, you have everything you need to size a pump and to track your water table over time. If a number is missing or looks inconsistent with a pump that is clearly set deeper, measure the field yourself with Method 2 and treat your own reading as the record going forward.

Typical Well Depths: What Is Normal for Your Region

There is no single “right” depth, because well depth is set by geology, not by preference. The depth needed to reach a productive aquifer varies dramatically by region. The table below gives the ranges we most commonly see in completed residential well reports across the United States, so you can sanity-check your own number against what is typical where you live.

Region / Setting	Typical Total Depth	Notes
Northeast US	100 to 300 ft	Fractured rock aquifers; depth driven by yield, not just water
Southeast US	50 to 150 ft	Shallow water table, but karst terrain can vary sharply lot to lot
Midwest (Iowa, Ohio, Illinois)	100 to 200 ft	Sand and gravel aquifers; depth set by the productive zone
Western US (mountain foothills)	100 to 400 ft	Often the deepest residential wells in the country
High Plains (Ogallala Aquifer)	200 to 400 ft	Declining water table in parts; depth has increased over decades
Coastal plains and river terraces	30 to 100 ft	Shallower, but saltwater intrusion can limit how deep you can go

Ranges compiled from residential well completion reports and regional water-resources guidance. Your specific lot can fall outside these bands, so always treat your own measured depth as the controlling number.

Insight

A well that is “too shallow” is usually not shallow because it ran out of rock — it is shallow because the aquifer it taps runs out of yield. Depth and productivity are related but not the same thing, which is why a deeper well is not automatically a better well. That is the core reason we pair total depth with a yield or drawdown reading instead of relying on depth alone.

How Well Depth Affects Your Pump Choice

Once you have the total depth and the static water level, you can see exactly how they shape the pump you need. A submersible pump must hang below the dynamic water level, and the motor must produce enough head to lift water from that depth to your house plus the friction losses in the pipe. In practical terms, a deeper well or a lower water level means a higher total head, which usually means a larger motor and a pump rated for a higher head curve.

The rough working relationship is this: take your static water level as the base lift, add the height from the wellhead to the highest fixture in the house, add a friction-loss allowance for the pipe run, and you have your total dynamic head. The pump you select must be rated to deliver your target flow at that head. A pump chosen for a 60-foot water level will struggle or run dry in a well whose water now sits at 120 feet, even if the total well depth is unchanged. That is why a drop in water level, not just the total depth, can force a pump upgrade. For the full sizing math, work through our step-by-step guide on how to size a well pump using the depth and level numbers you measure here.

Where to Buy: Tools for Measuring Well Depth

If you are going to measure your well yourself or confirm the number before a pump replacement, these are the tools we reach for. All are linked to Amazon with our referral tag.

Tool	What It Is For	Typical Price
Well Water Level Sensor	Electronic, repeatable depth-to-water readings to the inch	$40 to $120
Heavy-Duty Measuring Tape	The tape-and-weight method for total casing depth	$15 to $40
Submersible Well Pump	The motor you lower to your measured pump depth	$200 to $1,500
Sanitary Well Cap	Seals and protects the wellhead after you measure	$40 to $150

Prices are typical 2026 retail ranges and vary by model and retailer. Match the submersible pump to the total head your depth and water level produce, not just to the well depth alone.

Frequently Asked Questions

How deep is a typical residential well?

Most residential private wells in the United States are drilled to a total depth between 100 and 300 feet, but the range is wide. Shallow coastal and river-terrace wells can be under 50 feet, while High Plains and western mountain-foothill wells routinely reach 300 to 400 feet. Your geology and the depth of your local productive aquifer are what set the number, so compare your measured depth against your region rather than a national average.

How can I tell how deep my well is without removing the pump?

You have three no-dig options. First, request the driller’s completion report or county well record, which lists the total depth drilled. Second, measure the length of cable the installed pump is set on and add a 3 to 5 foot margin for a working estimate. Third, lower a water-level sensor on its cable to read the depth to the water precisely. None of these require pulling the pump out of the well.

Does a deeper well mean better or cleaner water?

Not automatically. A deeper well can reach a more protected aquifer and be less vulnerable to surface contamination, which is why depth is one factor in water quality. But depth alone does not guarantee quality, and a shallow well can produce excellent water while a deep well can hit iron, manganese, or hardness problems. Test your water for the contaminants that matter in your area rather than assuming depth equals quality.

What if my static water level is close to the top of the well?

If the water sits only a few feet below the wellhead, your pump has a short lift and you have a high-yield, shallow system — generally good news for energy cost. The caution is the opposite: a high water level leaves little room for seasonal decline, so a dry summer or heavy neighbor pumping can drop the level enough to run the pump dry. Track the level over the year and keep your pump set with enough margin below the lowest level you have observed.

How often should I re-measure my well depth and water level?

Re-measure the static water level at least once a year, ideally at the same season each year so the readings are comparable, and after any extended drought or major pumping event. The total well depth is a fixed physical dimension and does not change, so you only need to re-confirm it if you suspect the original record is wrong or after a well deepening project. Keeping a dated log of both numbers is what lets you spot a genuine water-table decline early.
