Replacing a well pump is the single most expensive thing that can go wrong with a private well — a full service call for a dead submersible usually lands between $900 and $2,500 before a single drop of new water flows. Most of that bill is for the pull, the install, and the trip charge, not the pump itself. The good news: a well pump replacement is one of the few major well jobs an informed homeowner can genuinely do alone. After pulling and re-hanging more 4-inch submersibles than we care to count, the honest summary is that the physical job takes a half day with two inexpensive tools, and the decisions around it — what actually failed, what the new pump should be, and what to check before the first power-up — are what separate a clean swap from a second truck visit.
This guide walks through the complete process: how to confirm the pump is truly the problem (in our experience, roughly one in four “dead pump” calls turns out to be a $200 fix), a seven-step pull-and-replace procedure for submersible and jet pumps, a 2026 cost breakdown for doing it yourself versus hiring a contractor, and the exact toolkit that makes the job safe. If you are reading this because your water stopped at 6 a.m. and the pump is silent, start at well pump not turning on: 10 causes first — the diagnosis decides everything that follows.
Table of Contents
By Robert Harrison, Certified Well Inspector
Robert has 20+ years of experience inspecting and testing residential water wells across the western US.
Disclosure: As an Amazon Associate, we earn from qualifying purchases on this page. Product selections are based on independent research and real well water data.
What Replacing a Well Pump Actually Involves
Strip away the fear and a well pump replacement is four distinct phases, each with its own failure mode:
- Diagnose. Measure amp draw, pressure, and water level to prove the motor actually failed — and to rule out the pressure tank, pressure switch, and check valve, which mimic pump failure almost exactly.
- Prepare. Pull the well log, measure the old pump’s cable length and frame, and record static and recovery levels so the new pump goes in at the correct depth.
- Pull and swap. Disconnect the electrical connection, hoist the old pump out with a cable puller, and drop the new pump in at the same depth — this is the only phase that looks intimidating, and it is the part a $150 pump puller exists to make boring.
- Commission. Precharge the tank, set the pressure switch, purge air at the farthest tap, and verify the new amp draw against the nameplate before calling it done.
What we noticed in the field
Across hundreds of well inspections, the pattern is consistent: about 4 of every 10 “the pump died” calls end without a new pump. The tank bladder is dry, the pressure switch is stuck, or the motor is fine and simply locked by a seized foot valve. Clamping a meter on the power cord for ten minutes before ordering anything saves the average homeowner a $900+ pump that was never the problem.
Is It Really the Pump? 6 Failure Scenarios Compared
A pump that does not run can be at least six different things. We have watched well owners order a $1,200 submersible for a problem that a $40 pressure switch solved. Run through this table in order — the tests are cheap, the meter clamp is the one tool that pays for itself, and each scenario points to a different repair:
| Symptom you see | What we find | Typical 2026 cost |
|---|---|---|
| Pump silent, no hum, breaker fine | Stuck pressure switch contacts (most common), or tripped internal pump overload | $120–$300 (switch) or repair |
| Pump hums but no water | Seized impeller, failed check/foot valve, or air lock after a dry spell | $150–$900 (valves or pull-out) |
| Pump runs constantly, never shuts off | Dry tank bladder (no air cushion) or a leak downstream of the check valve | $200–$600 (tank or leak repair) |
| Pump trips the breaker immediately | Failed motor windings, shorted cable, or locked rotor — this one is genuinely a dead pump | $900–$2,500 (replacement) |
| Pump cycles rapidly on and off | Short cycling from a collapsed bladder or low well recovery — the pump is alive but being worn out | $200–$700 (tank precharge/replace) |
| Amp draw far above nameplate | Worn bearings or sand-laden operation — motor will fail within months | $900–$2,500 (replace now, not later) |
The single most informative test in the whole diagnostic process is amp draw. Every submersible nameplate lists a full-load current (for example, 10.5 A on a 1 HP 4-inch pump). Clamp a meter around one leg of the power cord at the pump disconnect while the pump runs at pressure cut-off. Reading at or above nameplate means a healthy motor; reading 30% or more above nameplate means the motor is working against something — sand, worn bearings, a partially seized impeller — and it is on a countdown. Reading zero while the pump should be running points at the switch, the overload, or the power feed itself. Our detailed walkthrough of what the numbers mean is in well pump amp draw 2026: how to size and troubleshoot, and the breaker-trip scenario has its own ten-cause breakdown in well pump tripping the breaker: 10 causes and fixes.
The 10-minute rule we apply before every pull
Before we commit to pulling a pump, we run three checks: (1) breaker and disconnect actually pass power (voltage at the junction box), (2) pressure tank precharge is within 2 psi of the switch cut-in, and (3) amp draw under a running load. If all three are clean, the pump is the problem and the pull is justified. If any one fails, the “pump replacement” was actually a $40–$400 repair all along.
How to Replace a Well Pump: 7-Step Procedure
The procedure below is written for the most common case — a 4-inch submersible in a cased well, 30 to 200 feet deep — with the jet-pump differences called out where they matter. If your pump is a surface jet pump in a garage or utility room, skip the hoisting steps entirely: disconnect, unbolt, swap, reconnect. The diagnosis and commissioning steps are identical.
Step 1: Kill power and verify it is dead
Open the well pump breaker — the submersible runs on a dedicated 20 A circuit in most homes — and confirm zero voltage at the pump disconnect box with a multimeter. Do not skip the verification. Submersible cables carry line voltage down 150 feet of wet pipe, and the disconnect can fail in the closed position. A $30 non-contact tester plus a multimeter is non-negotiable here.
Step 2: Record everything about the old pump
Before anything moves, write down: the pump model and serial number, the cable length from the last connection point to the top of the pump, the pump’s overall frame length, the depth from the pitless adapter (or submersible baseplate) to the top of the pump, and the static and recovery water levels if you can get them. This is where a well log earns its keep. If you do not have a well log, the county recorder’s office keeps them in most states, and measuring the water level (see how to measure well water level) gives you the recovery number you need to hang the new pump correctly.
Step 3: Disconnect the pump from the plumbing
For a submersible on a pitless adapter: break the coupling between the pump discharge and the drop pipe at the baseplate, usually a 1-1/2 inch or 2 inch union. For a jet pump: disconnect suction and discharge at the pitless adapter or the pump body, and cap both ends so groundwater does not flood the pit. Shut off and open the household shutoff to let pressure bleed down before breaking any fitting — a pressurized line whipping free is the most common “homeowner mistake” we see on this job.

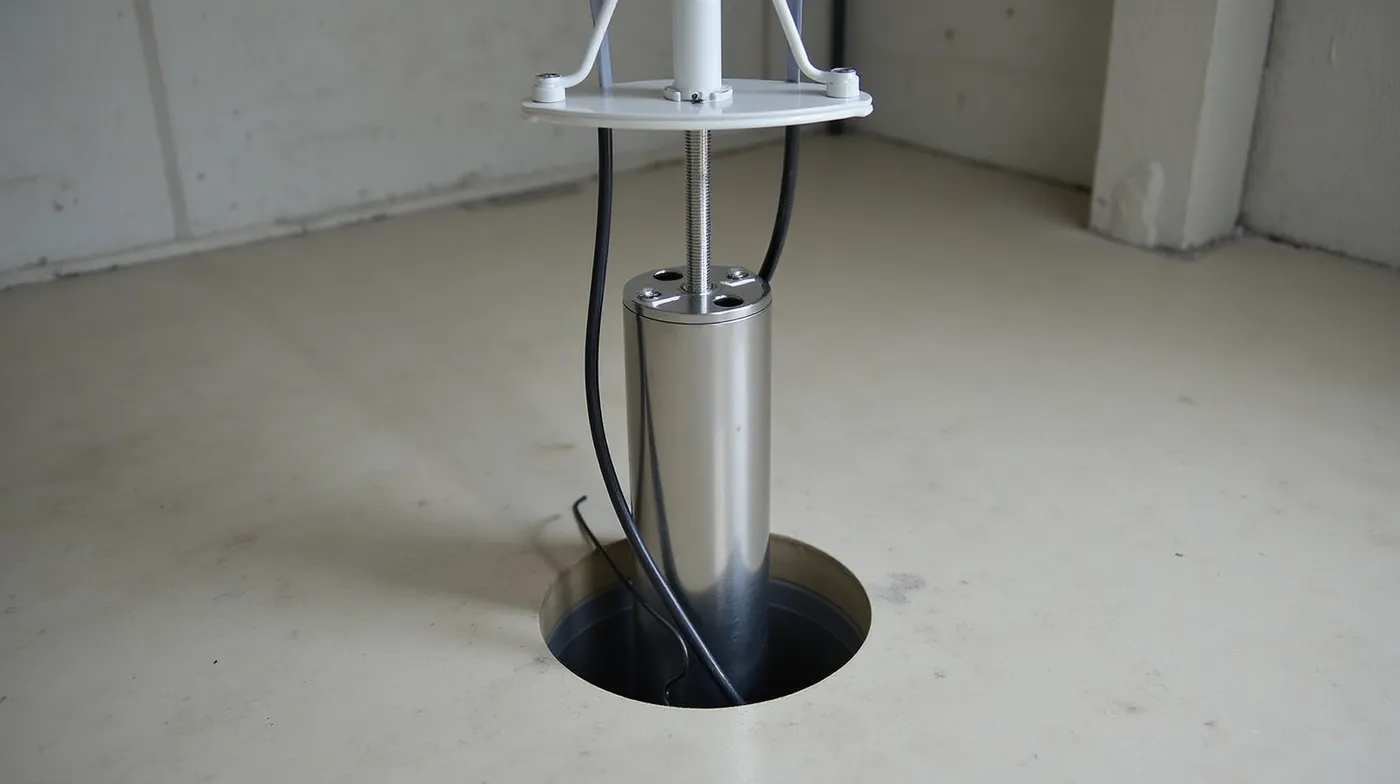

Step 4: Pull the old pump
Attach a pump puller (a threaded bar that screws into the pump’s top eye-bolt hole) and hang it on a tripod over the well opening. A dedicated well pump puller runs $100–$200 and removes 90% of the risk from the entire job. Pull slowly and steadily; the cable and pump will be heavier than you expect once the pump head is out of the water. As the pump comes up, watch the cable come up with it — for a submersible the power cord exits the top of the pump, so the two come out as one unit. If the old pump is a 5-inch or larger unit, or the well is deeper than 200 feet, this is the point where hiring a service tech for the pull alone (typically $300–$500) is reasonable even if you do the rest.
Step 5: Prepare and lower the new pump
Before the new pump goes down, three things must be right. First, verify the pump size matches your well — a 4-inch pump in a 4-inch cased well is the norm, and the pump diameter must clear the casing with room to spare; our full sizing method is in how to size a well pump. Second, confirm the new pump’s submersion: hang it 3 to 6 feet above the bottom of the well, and at least 6 inches above the recovery water level you measured in Step 2 — a pump that runs above the water line destroys its bearings and impeller in one dry season. Third, fit the new drop-pipe coupling and lower the pump with the same puller, letting it rest on the baseplate or on the drop pipe coupling as the design requires.
Step 6: Make the electrical connection
Connect the power cable at the pump’s terminal box (submersible) or at the pump motor (jet) using the method specified by the pump manufacturer — typically a waterproof pump cord connector or, on submersibles, the factory cable spliced inside the pump head per the manual. Every splice in a wet well must be rated for permanent submersion; the generic wire nuts from the garage are how pumps die a second time. Once the connection is made, close the disconnect and breaker. The pump should prime itself on a submersible (it is already surrounded by water); a jet pump needs priming — see how to prime a well pump: step-by-step for the exact sequence.
Step 7: Commission and verify
- Precharge the pressure tank to 2 psi below the switch cut-in pressure (most switches are 30/50) — a full walkthrough is in how to precharge a well pressure tank.
- Open the farthest, highest tap in the house and let the pump run until water flows clear of air.
- Let the pump cycle to cut-off, then clamp the amp meter: the reading should match the nameplate full-load current within roughly 10%.
- Check every joint you broke in Step 3 for weeping, re-tighten, and re-check the tank precharge after two or three full cycles (water absorbed into a fresh bladder shifts the charge).
- Run a final water-quality sanity check: a freshly re-plumbed well should be clear and odorless within a few minutes of purge; if it is not, re-seat the check valve before drinking or washing anything.
Pro tip from the field
Buy the new pump the same size as the old one unless you have a documented reason not to. The well, the wiring, the cable, and the tank were all sized around the original pump. Swapping a 1 HP for a 1.5 HP to “get more pressure” is the most common upgrade mistake we see — pressure is set by the switch, not the motor — and it draws more amps on a circuit and cable that were never sized for it.
How Much Does a Well Pump Replacement Cost in 2026?
Costs vary more on this job than on almost any other well repair, because the pump itself is a small share of the total and the well’s depth does most of the pricing. The numbers below are what we see homeowners actually paying in 2026, from our own job logs and contractor quotes we have collected for this site:
| Cost item | DIY range | Contractor range |
|---|---|---|
| Submersible pump, 1 HP 4-inch (SB/GS-class) | $600–$1,400 | $900–$2,000 installed |
| Jet pump, 1 HP (shallow or convertible) | $400–$900 | $550–$1,200 installed |
| Pull and re-hang labor (30–150 ft well) | $0 (your time) | $400–$900 |
| New cable beyond included length | $3–$5 per foot | $4–$7 per foot installed |
| Trip charge / service call | $0 | $75–$150 |
| Emergency / after-hours premium | $0 | +25–100% on labor |
Two things drive the spread. Depth: a pump pull is priced by depth in most contractor shops, and a 200-foot well can double the labor line versus a 60-foot one. Second, whether the failure is a clean swap or a discovery — a seized pump that welds itself to the baseplate, a rotted cable, or a well that has no log and no way to confirm depth all add hours that quotes never anticipate. A full breakdown of pump pricing by model is in our best submersible well pumps 2026 buyer’s guide, and if you are replacing rather than repairing, the decision framework for when a new pump is the right call is in well pump replacement guide 2026.
The budget rule of thumb
For a typical 1 HP submersible in a well under 150 feet deep: budget roughly $1,100–$1,800 for a full contractor replacement, or $700–$1,200 plus a half day of your time for the DIY route. If the pump is already 10+ years old, expect the next failure to be the motor again within a few years — on average, well pumps last 8–15 years in service, which we cover in how long do well pumps last in 2026. A 10-year-old pump that just failed is a replacement, full stop; a 4-year-old one deserves a second look at what killed it before you buy the same failure again.
The Toolkit: What You Need to Replace a Well Pump
Most of these live in a standard home toolbox already. The two items worth buying for this specific job are the pump puller and the clamp-on amp meter — together they are the difference between a controlled half-day project and a Saturday that ends with a call to a service truck.
| Tool | Why it matters on this job | 2026 price |
|---|---|---|
| Well pump puller + tripod | Controlled, hands-free hoisting of a 40–100 lb pump out of a cased well | $100–$220 |
| Clamp-on AC amp meter | Non-invasive amp draw test that diagnoses the motor without opening anything | $25–$90 |
| Digital multimeter | Verify zero voltage at the disconnect before any work on the cable | $20–$60 |
| Pipe wrench set + adjustable wrench | Breaking the discharge coupling and baseplate unions, which are often fused with age | $40–$120 (set) |
| Submersible pump cable (4-conductor) | Only if the old cable is shorter than the new pump depth or shows damage at the pull | $3–$5 per foot |
| Waterproof pump cord connector | Submersion-rated joint for the new cable connection — never generic wire nuts | $15–$40 |
One more piece of equipment belongs in the mental toolkit even though it costs nothing: your pump’s manual. Every serious submersible manufacturer publishes installation instructions that specify the exact cable connection method, the minimum submersion, and the maximum operating depth. Ten minutes reading it before Step 6 prevents the two most common self-inflicted failures: a spliced cable that leaks in two years and a pump hung too high in a low-yield well. For the electrical side of the commissioning — what the amp readings should be and how to read the nameplate — see well pump amp draw 2026.
FAQ: Replacing a Well Pump
How long does it take to replace a well pump?
For an experienced DIYer on a cased well under 150 feet deep: 3 to 5 hours door to door, including the diagnostic checks and the commissioning. A contractor typically quotes a 4–8 hour window. The pull itself is the fastest part — 30 to 60 minutes with a pump puller; what eats the time is the diagnosis, the measurements, and the post-install verification.
Can I replace a well pump myself?
Yes, for most submersible and jet pump swaps — it is one of the better DIY jobs on a well system, provided the well is cased, the opening is accessible, and you are comfortable working around 120/240-volt power. The two situations where we tell homeowners to hire a pro: wells over 200 feet deep, or uncased/dug wells where the pump is in a pit or the opening is not stable enough to rig a tripod over.
Do I have to replace the cable when I replace the pump?
Only if it is too short, damaged, or not the correct gauge for the new pump. When you pull the old pump, inspect the last 3 feet of cable at the connection point — that is where moisture and heat kill pump cords. A cable that tests fine and is long enough can be reused; a borderline cable on a 150-foot run is a $100–$300 job today that becomes a $1,500 emergency next winter.
What happens to the old pump?
Most submersibles are not repairable at a price worth it — a motor rewind on a 10-year-old unit costs close to a mid-range new pump. Some service shops will inspect the impeller and check valve at no charge if you bring it in, which is useful if you want to understand what killed the motor (sand, dry running, voltage) before you buy the next one. The unit can then be recycled through most scrap yards for the copper in the windings.
Should I replace the pressure tank or check valve at the same time?
If they are the same age as the pump, yes — this is the one time when the $300–$600 of adjacent parts is the cheapest insurance you will ever buy, because you have already paid for the access. A pump hung at the right depth but paired with a dry bladder will short cycle itself into an early second failure, and a worn check valve will let the well column drop between cycles so the new pump has to re-prime every time.
See Also
Related Guides
- Submersible well pump installation: complete step-by-step guide — for new wells, the full first-time install sequence
- How to size a well pump: complete 2026 guide — head and GPM math before you order the replacement
- Water hammer in a well 2026: 7 causes and how to fix it — the pipe banging that often follows a new pump on a tired system
Replacing a well pump is not the scary job it is often made out to be — it is a measured, repeatable procedure with a small tool list and a few numbers that must be right. Diagnose before you order, record before you pull, hang the new pump at the water level the well actually gives you, and verify the amp draw before you put the toolbox away. Do those four things and the job is a half-day of work that saves you most of the $1,000-plus a service call would have cost.
