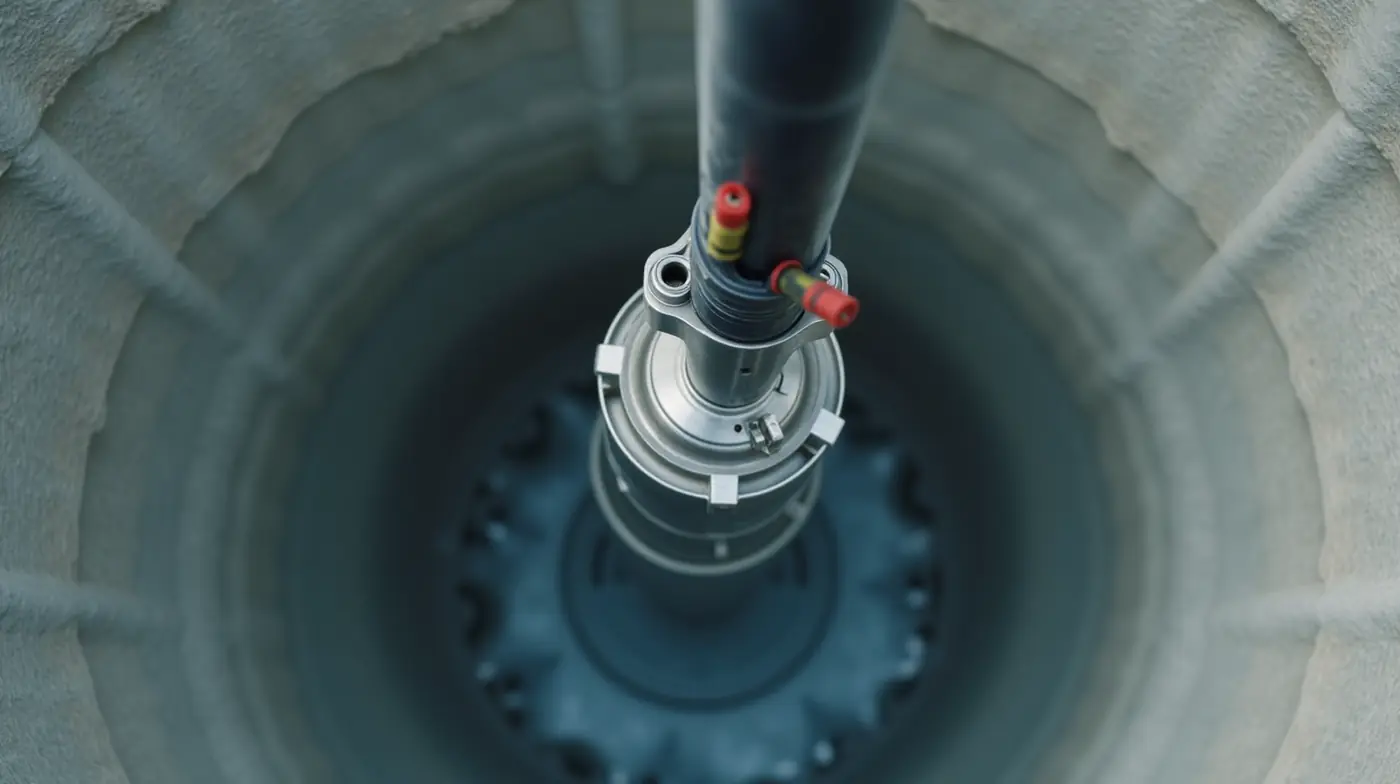

Pull a submersible well pump up from the well to replace it, and one of the first things you will notice is the bundle of thick leads running down to the motor, plus a small label that tells you whether it is a 2-wire or 3-wire pump. That distinction matters more than most homeowners realize: it determines whether the start relay and start capacitor live sealed inside the motor down in the well, or in a control box you can reach from your basement, and it dictates what you can and cannot do when you spec out a replacement. In this 2026 guide we explain exactly what 1-wire, 2-wire, and 3-wire submersible well pumps are, how to tell which one you have without pulling the pump, why wire count changes your repair and replacement options, and how to match the right pump and parts when it is time to buy.
By Thomas Reynolds, Pump Systems Engineer
Thomas has installed and serviced over 1,000 well pump systems for homeowners, from shallow residential wells to deep multi-horsepower installations.
Last updated: October 30, 2026
Disclosure: As an Amazon Associate, we earn from qualifying purchases on this page. Product selections are based on independent research and real well water data.
What “2-Wire” and “3-Wire” Actually Mean on a Submersible Well Pump
When the well industry talks about the “wire count” of a submersible pump, it is not referring to the thickness of the wire. Wire thickness is a separate measurement called gauge, expressed in AWG (American Wire Gauge), and it is about how much current the conductor can safely carry. Wire count means something simpler and more practical: the number of power leads that come out of the motor and run up the well to the surface, not counting the ground.
That count is decided by a single design choice. A single-phase submersible motor needs a way to create the initial rotating magnetic field that gets the rotor spinning, and it does that with a start relay (often a centrifugal switch) and a start capacitor. Depending on how the motor is built, that starting hardware either lives sealed inside the motor housing down in the well, or it sits in a control box in your basement or utility room. That one decision is the entire reason the 2-wire and 3-wire configurations exist, and it is what you are really choosing when you pick a replacement pump.
2-Wire Submersible Well Pump: How It Works
A 2-wire submersible well pump has its start relay and start capacitor sealed inside the motor. Because all of the starting hardware is already down in the well with the motor, only two power conductors, plus the ground, need to run up the well to the surface. These motors are typically resistance-start, induction-run (split-phase) designs, or permanent-split-capacitor (PSC) designs with the capacitor potted inside the housing.
From our installation work
The 2-wire pumps we have set up are almost always the smaller residential units, roughly 1/2 HP to 1 1/2 HP. Above 1 1/2 HP, virtually every manufacturer switches to a 3-wire configuration because the starting current gets too high to manage inside a sealed motor. So if your pump is 1 1/2 HP or larger, it is almost certainly a 3-wire pump.
The defining characteristics of a 2-wire submersible well pump:
- Two power leads plus ground come out of the pump and run to the surface. There is no control box.
- Start relay and start capacitor are sealed inside the motor, down in the well with the pump.
- Typically 1/2 HP to 1 1/2 HP, suited to smaller residential wells.
- The well line runs straight to the pressure switch (or a simple disconnect), with no relay box in between.
- If the start capacitor or relay fails, the pump must be pulled to diagnose and repair it, because the failed part is underwater.
3-Wire Submersible Well Pump: How It Works
A 3-wire submersible well pump keeps the start relay and start capacitor outside the motor, in a control box mounted in your basement or utility room. Because the starting hardware is up at the surface, three conductors, plus the ground, run up the well: one for the start winding, one for the run winding, and one common lead. The most common 3-wire designs are capacitor-start, induction-run (CSIR) and capacitor-start, capacitor-run (CSCR).
The practical difference that matters
The control box is where a 3-wire system earns its keep. In a 3-wire setup, the relay and the capacitor, the two parts that fail most often on a submersible motor, are sitting at waist height in your basement instead of sealed 60 feet underground. When they go, a 3-wire pump usually costs an afternoon and a $30 part, while a 2-wire pump means a pump pull.
The defining characteristics of a 3-wire submersible well pump:
- Three power leads plus ground come out of the pump and run to the surface.
- Start relay and capacitor live in an external control box in the basement or utility room.
- Typically 1 HP and up; the standard configuration for most residential and light-commercial wells.
- Starting problems are easier and cheaper to diagnose and repair, because the relay and capacitor are accessible.
- Required for higher horsepower motors and for operation with a variable frequency drive (VFD), which is why most constant-pressure systems use 3-wire pumps.
1-Wire, 2-Wire, and 3-Wire: The Full Comparison
The table below lines up the three configurations side by side so you can see exactly how they differ. The 1-wire design is rare on modern submersibles (you will mostly meet it on small point pumps and older units), but it is included for completeness because it shows up in some replacement scenarios.
| Feature | 1-Wire | 2-Wire | 3-Wire |
|---|---|---|---|
| Power leads (excl. ground) | 1 | 2 | 3 |
| Start relay location | Inside motor | Inside motor | External control box |
| Start capacitor location | Inside motor | Inside motor | External control box |
| Typical horsepower | 1/3 HP and under | 1/2 to 1 1/2 HP | 1 HP and up |
| Control box required | No | No | Yes |
| Common motor type | PSC / self-start | Resistance-start / PSC | CSIR / CSCR |
| If starting parts fail | Pull the pump | Pull the pump | Service the control box |
| Best suited for | Small shallow / point pumps | Small residential wells | Most residential & light-commercial wells |
How to Tell If Your Submersible Well Pump Is 2-Wire or 3-Wire
You do not need to pull the pump to find out which wiring you have. Work through these checks in order, from the easiest to the most involved, and stop as soon as you have a clear answer.
- Count the leads where the cable comes out of the well. At the pitless adapter or wellhead, look at the conductors running into the wall or to the panel. Two power conductors plus a ground means a 2-wire pump. Three power conductors plus a ground means a 3-wire pump. The ground is usually a bare or green lead, so do not count it in the wire number.
- Look for a control box in the basement. If there is a metal box mounted on the wall or the pressure tank with a relay and capacitor inside, and three wires running down to the well, you have a 3-wire pump. If the well line runs straight into the pressure switch with no relay box in the path, it is a 2-wire pump.
- Read the pump nameplate. When the pump is pulled for service, the label on the motor states the voltage, full-load amps, horsepower, and usually the wiring configuration, printed as “2-Wire + G” or “3-Wire.” Our guide to reading a well pump nameplate walks through every field so you can decode it in seconds.
- Check the model number and documentation. Most manufacturers encode the wiring in the model code, and the original install ticket or the pump manual will list it. Search the full model number, not just the base number, to get the exact configuration.
- Test the windings with a multimeter (advanced). With power off and the pump leads disconnected at the surface, you can measure resistance between the leads. On a 3-wire motor there is a common lead: the resistance from common to the start winding plus the resistance from common to the run winding will roughly equal the resistance measured directly from start to run. A 2-wire motor has no common lead, so this test will not produce a matching pair.
Why Wire Count Matters When You Replace Your Well Pump
When it is time to replace the pump, the wiring of the new pump has to be compatible with the conductors you have already run down the well. You do not have to match the old pump exactly, but you do have to understand what your existing setup can support, because the direction of the change determines how much work the job is.
Replacing a 3-wire pump with a 2-wire pump is the easy direction. The new 2-wire pump uses only two of the three conductors you already have down the well. You cap off the extra lead at the top and at the pump, and you are done. No new wire is needed, which is why this is the common and inexpensive swap.
Replacing a 2-wire pump with a 3-wire pump is the harder direction. You only have two conductors down the well, but a 3-wire pump needs three. You have to run a third conductor, which in practice means re-pulling the pump on a new 3-conductor cable, and install a control box at the surface. It is a full rewire, not a plug-and-play swap.
Rule of thumb when you are not sure
Match the old pump’s wiring, or move up to 3-wire. Three-wire is the more serviceable, future-proof choice, and most replacement pumps at 1 HP and above are 3-wire anyway. Our step-by-step guide to replacing a well pump covers the full 7-step process, the tools you need, and what the labor typically costs.
Can You Convert a 2-Wire Pump to 3-Wire (or the Reverse)?
You cannot convert the motor itself. Wire count is a function of the motor’s internal design, so the only way to change it is to change the pump or rewire the circuit. With that in mind, here is how the two directions actually work:
- 3-wire to 2-wire: simple. Install the new 2-wire pump, connect it to two of the three conductors you already have, and cap off the third at both ends. This is a straightforward swap that most homeowners can do if they are comfortable with basic electrical work.
- 2-wire to 3-wire: requires a rewire. You must get a third conductor down to the pump, which usually means pulling the pump and re-lowering it on a new 3-conductor cable, then mounting and wiring a control box at the surface. Budget for the cable, the box, and the labor of a pump pull.
Because the 3-wire to 2-wire direction is nearly free and the 2-wire to 3-wire direction costs a real job, most installers recommend going to 3-wire if you are already pulling the pump for any reason. You are paying for the pull anyway, and 3-wire gives you a serviceable control box for the life of the system. For the pin-by-pin connections either way, our well pump wiring diagram guide shows 2-wire and 3-wire hookups with the pressure switch and control box.
2-Wire vs 3-Wire: Cost, Repair, and Longevity
Both configurations deliver the same water, so the real differences show up in the purchase price, the installation labor, and what happens the day a starting part fails. Here is how they compare across the life of the system, based on the systems we have installed and serviced.
| Factor | 2-Wire | 3-Wire |
|---|---|---|
| Initial equipment cost | Slightly lower (no control box) | Slightly higher (control box included) |
| Installation labor | Simpler (no box to wire) | Moderate (wire the control box) |
| Most common failure point | Start capacitor / relay (inside motor) | Start relay / capacitor (in control box) |
| Repair if starting parts fail | Pull the pump ($400 to $900 in labor) | Swap relay or capacitor ($30 to $150 in parts) |
| Typical service life | 8 to 15 years | 10 to 20 years (box parts serviceable) |
| Best suited for | Small wells, 1/2 to 1 1/2 HP | Most residential wells, 1 HP and up |
What the service calls tell us
Across the systems we have serviced, the 3-wire control box is the single most cost-effective part of the whole setup. A $40 relay or capacitor swapped in the basement routinely adds years to a pump that would otherwise have been condemned over a failed start capacitor down the hole. That is why we almost always recommend 3-wire for any well at 1 HP or above.
Where to Buy: Pumps, Control Boxes, and Test Gear
Once you know which wiring you have and which direction you are going, these are the parts most homeowners order for a 2-wire to 3-wire (or 3-wire to 2-wire) swap. Always verify the exact model, voltage, and wiring against the pump nameplate before you order.
| Item | What to Look For | Where to Buy |
|---|---|---|
| Submersible well pump | Match HP, GPM, voltage, and 2- or 3-wire to your well | Submersible Well Pump |
| Well pump control box | Sized to the pump’s amperage; matches voltage and wiring | Well Pump Control Box |
| Well pump start relay | Correct relay for the pump’s HP and voltage | Well Pump Start Relay |
| Digital multimeter | For lead testing, continuity, and winding checks | Digital Multimeter |
| Submersible well pump cable | 3-conductor plus ground pump cable, right AWG for run length | Submersible Well Pump Cable |
If you are not certain what horsepower and flow rate your well actually needs before you order a pump, start with our guide to sizing a well pump, and see our breakdown of 115V vs 230V submersible well pumps once you know the wiring.
Frequently Asked Questions
How do I know if my well pump is 2-wire or 3-wire?
Count the power conductors (not the ground) where the pump cable comes out of the well, or look for a control box in your basement. Two conductors means a 2-wire pump; three conductors means a 3-wire pump. The presence of a control box with a relay and capacitor is the fastest giveaway for a 3-wire system.
Can I put a 2-wire pump on a 3-wire well?
Yes, and it is the easy direction. Connect the new 2-wire pump to two of the three conductors you already have down the well and cap off the extra one at both ends. No new wire is required.
Can I put a 3-wire pump on a 2-wire well?
Only if you run a third conductor down to the pump, which usually means re-pulling the pump on a new 3-conductor cable, and then install a control box at the surface. It is a rewire, not a simple swap.
Are 3-wire pumps better than 2-wire pumps?
For most residential wells, yes. A 3-wire pump keeps the start relay and capacitor in an accessible control box, so starting problems are cheaper and faster to fix. A 2-wire pump is a perfectly good choice for a small well at 1/2 to 1 1/2 HP, where the lower starting current is easy to manage inside the motor.
What is the difference between 1-wire, 2-wire, and 3-wire pumps?
It is the number of power leads coming out of the motor, not counting the ground. A 1-wire pump uses a single-winding self-starting motor and is rare on modern submersibles. A 2-wire pump has its start hardware sealed inside the motor. A 3-wire pump has its start hardware in an external control box, which is why it is the most serviceable option.
